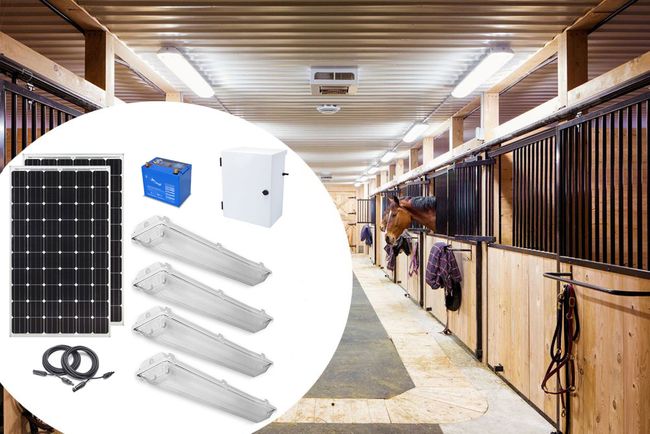

Earthtech Products Barn and Outbuilding Lighting Kit 4 - 4 Lights (9,516 Lumens), 200W Solar Panel, (2) 85 Ah Battery

Our Commercial Lighting Kits will provide your Oversized barns, outbuildings, lean-tos, and other remote buildings with bright white light without the need for grid power. Experience reliable off-grid illumination like never before. Achieve peace of mind with remote monitoring, 3 day autonomy and zero grid-reliance.

Best Uses and Key Features:

•	Light up your Oversized Barns, Outbuildings, Lean-tos, Carports, Outhouses and other remote buildings!
•	Our Custom Lighting Kits only include the highest-end components. Pre-Wired, Pre-Configured, Plug and Play for Easy Set Up
•	5+ Year Warranty on All Major Components! (Compared to industry standard 1 year warranty)
•	In-built 3 Day Autonomy means you will see Reliable Operation regardless of weather conditions and overcast days.
•	Set up Custom Run Times directly from your Phones and Tablets with the User Friendly Mobile Application!

High Efficiency Poly-Crystalline Solar Panel:

•	Our Polycrystalline Solar Panels undergo rigorous quality control to meet the highest international standards
•	The Unique frame is designed with high mechanical strength for easy installation and long lasting performance
•	Outstanding electrical performance under high temperature and low irradiance conditions.
•	Includes 5 Yr limited warranty on materials & workmanship and 25 Yr on >80% power output and 10 Yr on >90% power output.

Wireless Ultra-Fast MPPT Solar Charge Controller:

•	Features built-in Bluetooth APP connectivity for wireless set-up, monitoring and update capabilities.
•	Features Ultra-fast Maximum Power Point Tracking Technology. Even in clouded sky conditions, when light intensity is changing continuously, this ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
•	Software allows for Day/Night timing and light dimming options for full customization!
•	Includes Extended 5 Year Manufacturer Warranty!

Solar Charge Controller Smart Device Application:



Long-Lasting AGM Battery:

•	Includes replaceable AGM Lead Acid Battery with Prorated 5 Year Manufacturer Warranty!

High-End 4 Ft Light Fixture:

•	Features 100,000+ Hour guaranteed lifespan.
•	The Four High Quality 15 Watt Light Fixtures Output 2,379 Lumens Each (Total of 9,516 Lumens)!
•	Includes Extended 7 Year Manufacturer Warranty for guaranteed longevity!
•	Features easy to use magnetic mount for simple set up!

Powder Coated Aluminum Battery Box:

•	Includes Powder Coated Aluminum Nema 3R Enclosure for long lasting performance
•	The Pad lockable latch means secure installation no matter the location.
•	UV Resistant build with high temperature silicon for reliable operation in the harshest of conditions.

Aluminum Nema 3R Enclosure (Front & Back):




Zone Map:



Explanation of Solar Zones:

Our kits are designed for three-day autonomy. This means you will see full operation even after receiving no sunlight for 3 full days!

By finding your location on the above map. You can determine which Solar Zone your installation will be located in. This information displays the Historical Peak Sun Hours in the worst month of the year with solar panels at a 45 degree angle.

Installation Tips:

Make sure your intended location for the solar panel receives direct sunlight between 9 AM and 3 PM.

When installing the panel, make sure it is facing solar south. (South on Google Maps is solar south)

Please Note: This product ships via freight carrier. You will need to be present for delivery. Carrier will contact you by phone regarding expected time of delivery.
