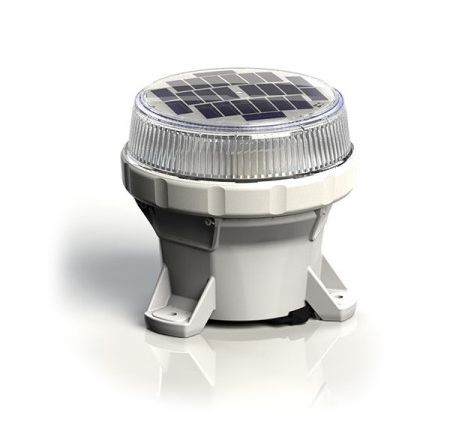

Carmanah OL4 LED Solar Aviation Lantern - White

Name: Carmanah OL4 LED Solar Aviation Lantern - White
SKU: OL4-W
Price: 869.00 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: OL4-W

Ship Weight: 8 lbs.

Regular Price: $959.00

Sale Price: $869.00

You Save 9% ($90.00)

Product Details

The Carmanah OL4 LED Solar Aviation Lantern - White is a high-performance warning light designed to perform reliably at tough industrial locations including rail yards, construction zones, mining operations, aviation applications and much more. Suitable for permanent, temporary or emergency installations, the OL4 is unrivaled by any other hazard marking or barricade light currently available.

•	Practical: Ideal for aviation aids-to-navigation marking, airports, oil rig marking, cranes and so much more!

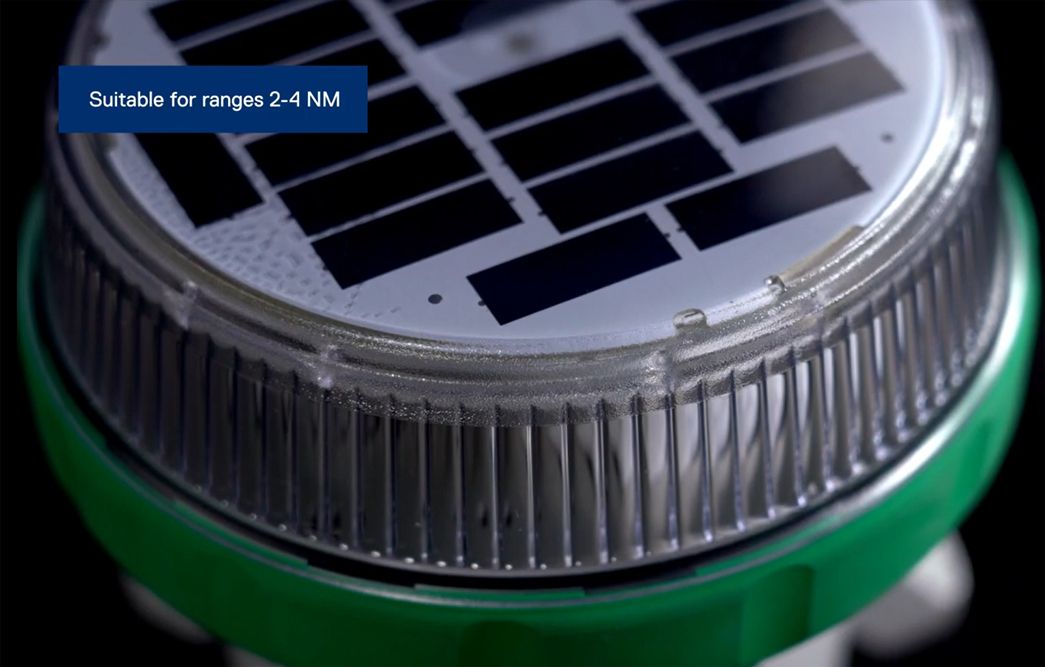

•	Powerful: The Super Bright LED lights are visible from 2 to 4+ NM!

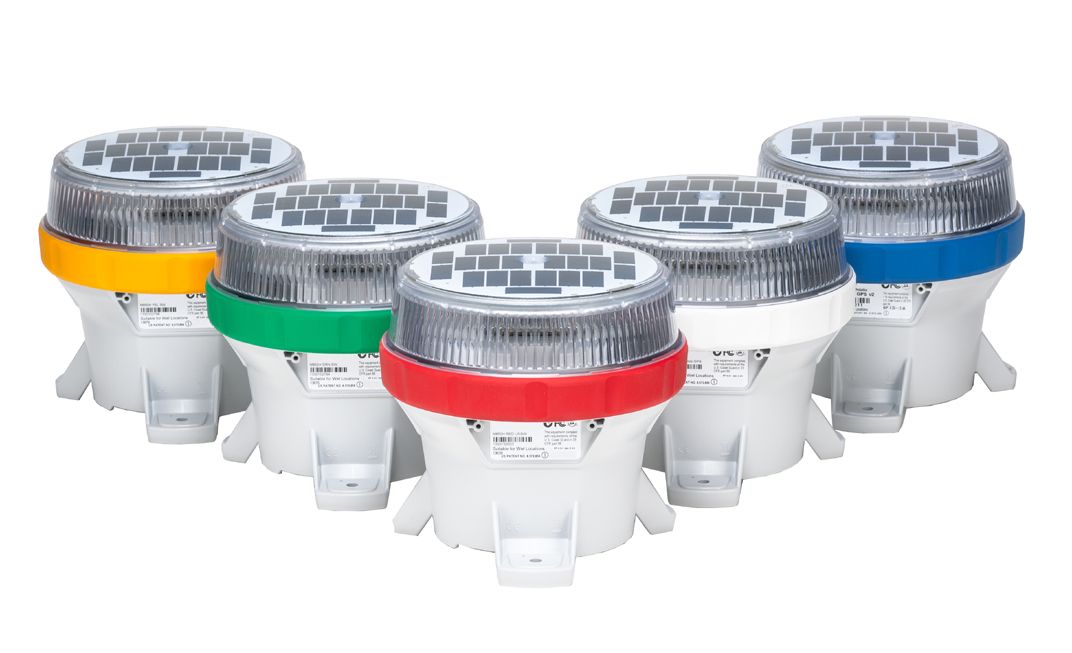

•	Diverse: Available in White, Red, Yellow, Blue and Green LED models.

•	MPPT Controller: High-efficiency solar cells with bypass and blocking diode function. Maximum power point tracking (MPPT) for optimal energy collection.

•	Intelligent Operation: Color-specific temperature corrected LED drivers provide consistent intensity under all operating conditions.

•	Heavy Duty: Premium grade UV resistant, polycarbonate/polysiloxane co-polymer body and lens material.

•	Waterproof: Features durable IP 68 rating and double O-ring sealing with waterproof vent for long lasting performance.

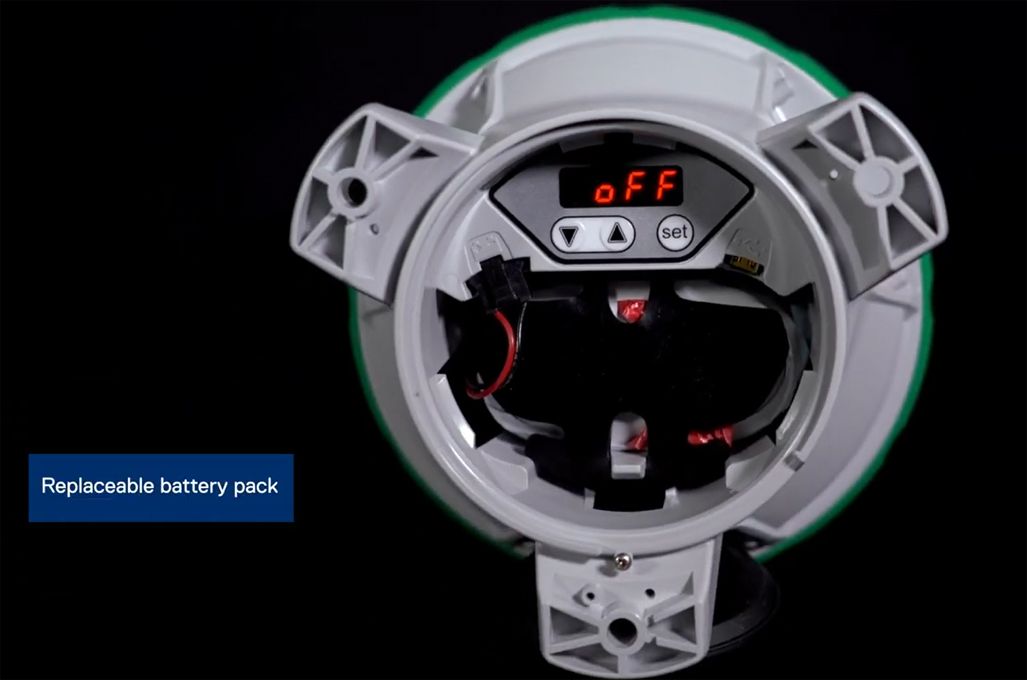

•	Long Lasting Battery: Tool-less replaceable and recyclable best-in-class battery pack with extreme temperature range and 5-year life expectancy. On-board battery status feedback of Good, Charge, Low or Replace. True battery voltage shown.

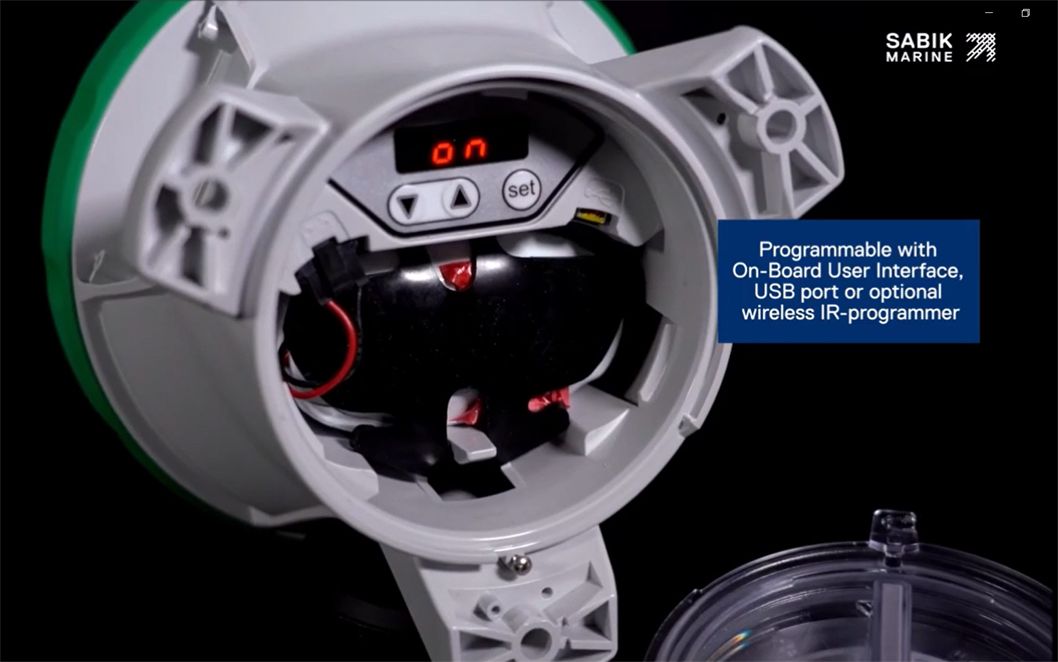

•	On-Board User Interface: Configure lantern parameters and features and access status reports.

•	650 Device Manager Software: Connect Windows based PC via USB port to configure parameters, view detailed information about the lantern, change transition settings, change passcodes, and update firmware. Multi-level access for advanced features.

•	Optional Wildlife Deterrent: The Stainless steel bird spike offers tool-less installation and replacement (contact us at 877-548-3387 to purchase).

•	Optional IR Controller: Check battery status, change flash code, adjust light intensity and turn lantern off with optional mini IR (Infrared) programmer. (Click Here to view)

•	Simple Installation: Supports installation on structure using 3 x M6 bolts on a 150 mm diameter.

•	Barge Application: For barge application, sector plates with open sectors of 112 Degrees, 135 Degrees and 225 Degrees.

Specifications

SPECIFICATIONS
Manufacturer:	Carmanah Sabik
LED Type:	White, Red, Yellow, Blue, Green
Batteries:	Sealed Lead Acid
Overall Height:	170 mm
Overall Width:	176 mm dia.
Installation:	3 x M6 on 150 mm dia.
Construction:	Premium grade UV resistant, polycarbonate/polysiloxane co-polymer body and lens material
Lens visual/Mechanical diameter:	165 mm
Lens Material:	UV stabilized polycarbonate
Light Source:	High Power Light Emitting Diode (LED)
Solar Module:	High efficiency cells; bypass and blocking diodes; MPPT
Degree of Ingress Protection:	IP 68
Weight:	1.58 kg
Warranty:	Battery: 1 Year Manufacturer Warranty Light: 3 Year Manufacturer Warranty
Compliance
MIL-STD-202G:	Humidity, immersion, vibration, shock
MIL-STD-810G:	Solar radiation, salt-fog
EN 60945:	ESD, EMI, EMC; IP68; L70
FAA Advisory:	FAA Advisory Circular AC 150/5370-2E Commercial Part 139 Airports for barricade and construction applications
ICAO:	ICAO Annex 14, Volume 1, 4th edition (blue light)
Solar Panel
Cells:	High-efficiency cells with bypass and blocking diode function
Charge Controller:	Maximum power point tracking (MPPT) for optimal energy collection
Battery
Replaceable:	Tool-less replaceable and recyclable best-in-class battery pack with extreme temperature range
Battery Display:	Battery status feedback of Good, Charge or Bad (Replace)
Light Source
Type:	High-powered LEDs
Light Output:	Color-specific temperature corrected LED drivers provide consistent intensity under all operating conditions
Intensity
Output:	Greater than 10 cd intensity, steady-on
Max Intensity:	18 cd peak intensity, flashing, 12.5% duty cycle (red LEDs)
Flash Patterns:	256+
Construction
Materials:	Premium-grade, UV-resistant, polycarbonate/polysiloxane co-polymer body and lens material
Seal:	Double O-ring sealing with waterproof vent
Colors
Options:	Red, blue, yellow, green, white
Color Certs:	ICAO and SAE25050 (FAA) compliant chromaticity
Color Indicator
Certifications:	Yes, FAA Eng. Brief 67 compliant
Temperature
Temperature Ranges:	-45 to 124 F (-43 to 51 C) operating -45 to 176 F (-43 to 80 C) storage
Wind Loading
Wind Resistance:	400 mph (180 m/s)
Automatic Light Control (ALC)
Automatic Response:	When enabled, automatically adjusts to low levels of sunlight to provide continuous operation

What's Included

What's Included:

• Carmanah OL4 LED Solar Aviation Lantern - White
