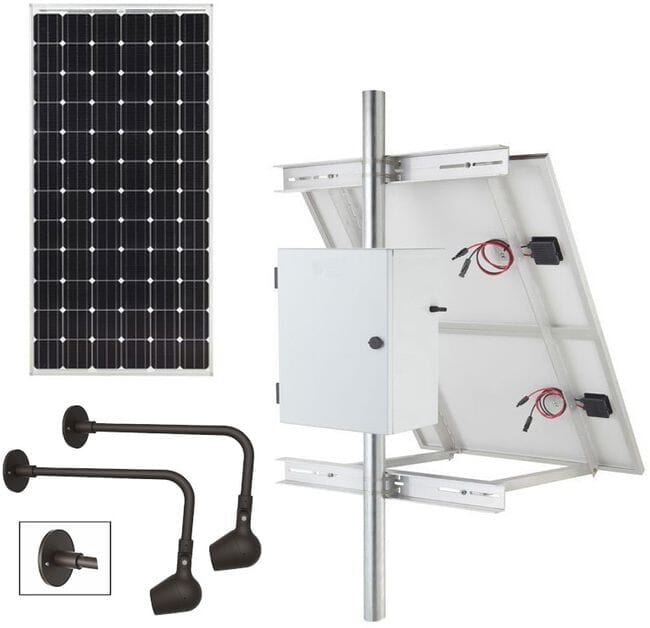

Commercial Solar Billboard Lighting Kit

Our Commercial Solar Billboard Lighting Kit is the most reliable, powerful, surface mount lighting kit on the market. Fully Assembled right here in the United States; illuminating your signs and billboards directly from the surface of your sign has never been easier. Achieve peace of mind with remote monitoring, 3 day autonomy and zero grid-reliance.

Best Uses and Key Features:

•	Perfect for Signs, Billboards, Monuments, Entrances, Store Fronts and so much more!
•	Our Custom Lighting Kits only include the highest-end components. Pre-Wired, Pre-Configured, Plug and Play for Easy Set Up
•	5+ Year Warranty on All Major Components! (Compared to industry standard 1 year warranty)
•	In-built 3 Day Autonomy means you will see Reliable Operation regardless of weather conditions and overcast days.
•	Set up Custom Run Times directly from your Phones and Tablets with the User Friendly Mobile Application!
•	Designed for 8 Hour Daily Operation. A Single charge will provide operation for 3 full days!

High Efficiency Poly-Crystalline Solar Panels:

•	Our Polycrystalline Solar Panels undergo rigorous quality control to meet the highest international standards
•	The Unique frame is designed with high mechanical strength for easy installation and long lasting performance
•	Outstanding electrical performance under high temperature and low irradiance conditions.
•	Includes 5 Yr limited warranty on materials & workmanship and 25 Yr on >80% power output and 10 Yr on >90% power output.

Wireless Ultra-Fast MPPT Solar Charge Controller:

•	Features built-in Bluetooth APP connectivity for wireless set-up, monitoring and update capabilities.
•	Features Ultra-fast Maximum Power Point Tracking Technology. Even in clouded sky conditions, when light intensity is changing continuously, this ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
•	Software allows for Day/Night timing and light dimming options for full customization!
•	Includes Extended 5 Year Manufacturer Warranty!

Solar Charge Controller Smart Device Application:



Long-Lasting AGM Battery:

•	Includes replaceable AGM Lead Acid Battery with Prorated 5 Year Manufacturer Warranty!

Gooseneck Light Fixture:

•	Features Die-cast Aluminum Housing for long lasting performance.
•	The High Quality Cree LEDs output a massive 100 lumens per watt! 2000 Total Lumen output!
•	Includes Extended 5 Year Manufacturer Warranty for guaranteed longevity!

Powder Coated Aluminum Battery Box:

•	Includes Powder Coated Aluminum Nema 3R Enclosure for long lasting performance
•	The Pad lockable latch means secure installation no matter the location.
•	UV Resistant build with high temperature silicon for reliable operation in the harshest of conditions.

Aluminum Nema 3R Enclosure (Front & Back):



Zone Map:



Explanation of Solar Zones:

Our kits are designed for three-day autonomy. This means you will see full operation even after receiving no sunlight for 3 full days!

By finding your location on the above map. You can determine which Solar Zone your installation will be located in. This information displays the Historical Peak Sun Hours in the worst month of the year with solar panels at a 45 degree angle.

Installation Tips:

Make sure your intended location for the solar panel receives direct sunlight between 9 AM and 3 PM.

When installing the panel, make sure it is facing solar south. (South on Google Maps is solar south)

Please Note: This product ships via freight carrier. You will need to be present for delivery. Carrier will contact you by phone regarding expected time of delivery.
