EcoFlow 15kWh Independence Power Kit

Name: EcoFlow 15kWh Independence Power Kit
SKU: ZMM100BP15-3
Price: 17699.00 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: ZMM100BP15-3

Ship Weight: 450 lbs.

Regular Price: $18,699.00

Cyber Sale: $17,699.00

You Save 5% ($1,000.00)

Product Details

The EcoFlow 15kWh Independence Power Kit allows you to quickly build a sizeable electrical system for your van/off-grid home using LFP batteries, Power Hub, Monitor and the AC/DC Distribution Panel. Easily expand to fit your growing needs with the Ecoflow Power Kits.

•	Easy Set Up: The integrated EcoFlow Power Hub has a simple plug-and-play design, allowing you to expand and customize your kit faster than any other power solution on the market.
•	Save Space: The EcoFlow Power Hub combines two MPPT solar charge controllers, one battery charger with MPPT, one DC-DC step-down converter, and an inverter-charger. With fewer modules and thinner wires, this 48V system saves you space and installation hassle.
•	Charge Your Way: The EcoFlow Power Kits support multiple charging methods. Get plenty of solar power, use your alternator, plug in shore power, or even use the EcoFlow Smart Gas Generator for emergency charging (sold separately).
•	Monitor: The included Power Kit Console allows the user to monitor, adjust and update directly from the 7-Inch (Diagonal) IPS Touch Screen display.

Customizable Kits for Vans/RVs/Trailers or Cabins:

•	From tiny home to an off-grid cabin, you can adjust your kit to fit any size build.
•	Whether you�re replacing your van�s electrics or building a system from scratch, the plug-and-play system allows you to easily modify your hardware to fit your mobile power needs.

Multiple Ways to Stay Powered:

•	You might live off-grid, but you still rely on power. Get multiple methods of charging using a combination of rigid, flexible, and portable solar panels and our Smart Generator if you�re in a jam.

Setup Made Simple:

•	We made our modular system plug-and-play so you can quickly customize your van power whenever you want. Simply stack a battery to increase capacity, or plug in a solar panel for faster charging.
•	We�ve got experts on-hand to guide you through the installation process.

Compact & Integrated Design:

•	Unlike other off-grid power solutions, our Power Kits combine five components into one Power Hub that handles all of your power needs, saving you space, money, and set-up hassle.

Auto-Heating Batteries:

•	Our LFP batteries are auto-heating so you can even use them in cold climates without affecting their life-span.

48V, a Safer, Smaller Power Solution:

•	Our Power Kits offer you a safe, 48V power solution for your off-grid home. A 48V system produces the same amount of power, but unlike 12Vs, only a quarter of the electric current passes through thinner wires, producing significantly less heat and power loss.

Smart Controls:

•	Keep an eye on your energy at home and on the go with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console.

AC/DC Smart Distribution Panel:

•	Control DC and AC power directly from the Smart Panel for easy connection and remote monitoring.
•	Features 6x AC Positions with 20A Circuit Breakers and 12x Fused DC Positions (6x Positions Controllable via Power Kit Console & APP).

Battery Expansion:

•	The Power Hub can handle up to 3 LFP batteries in parallel, ranging from 2kWh to 15kWh of stored energy. Choose your power combination at will and increase capacity with ease.
•	2 kWh LFP Batteries can expand up to 6 kWh. The Expanded 5 kWh LFP Batteries have the ability to expand up to 15 kWh.

Power Kit Console:

•	Easily customize, monitor and maintain firmware updates using the included Power Kit Console.

Major Solar Input Capabilities:

•	The Power Hub features Dual 30A MPPT Charge Controllers that allow for up to 3200 Watts combined!
•	Add your favorite rigid, flexible or foldable solar panels to your off-grid system and recharge in record time!

Specifications

Power Hub
Manufacturer Name:	EcoFlow
Sine Wave:	Pure Sine Wave
DC Output:	70A, 12V, 1000W or 60A, 24V, 1500W
AC Main Out:	30A Max, 120V, 3600W (6000W Surge) (3000W @ Battery Voltage < 50V)
AC Outlet:	20A Max, 120V, 2400W
AC Charger:	85V - 144V, 3000W
DC Battery Charger with MPPT:	60A, 13V - 60V, 1000W Convertible DC
Solar Charge Controller:	Dual 30A, 15V - 150V, 1600W MPPT Solar Charge Controllers, 3200W combined
Operating Temp:	-13F to 140F
Dimensions:	11.8" x 18.9" x 5.5" (H x W x D)
Weight:	31 lbs
Certs:	CE, UL, FCC Compliance / EMC Class A

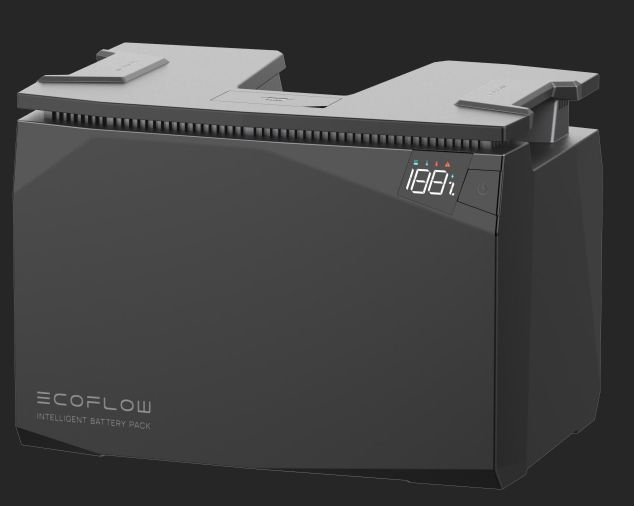

5kWh LFP Battery
Type:	Lithium Iron Phosphate Chemistry
Rating:	51.2V (Nominal), 100Ah
Lifespan:	3000 Cycles @ 80% DOD
LED:	Integrated BMS and LCD Indicator
Special Features:	Auto-Heating for Cold Environments
Connection:	Quick Access Fuse Box Mounted
BMS:	Advanced Battery Safety Protections
Charging Temp:	-4F to 125F
Discharging Temp:	-4F to 140F
Dimensions:	11.8" x 19.7" x 10.3" (H x W x D)
Weight:	89.5 lbs
Certs:	CE, UL, FCC, IC, UN38.3, IP54 Compliance / EMC Class B
AC/DC Smart Distribution Panel
AC Main Input:	30A Max, 120V, 3600W
DC Main Input for 12V or 24V System:	12V, 70A, 1000W Max or 24V, 60A, 1500W Max
AC Output:	6x AC Positions with 20A Circuit Breakers
DC Output:	12 X Fused DC Positions (6 X Positions Controllable via Power Kit Console & APP)
Monitoring:	All AC & DC Positions Can be Monitored
Operating Temp:	-13F to 140F
Dimensions:	8.3" x 14" x 3.9" (H x W x D)
Weight:	5.7 lbs
Certs:	CE, UL, FCC, IP21 Compliance / EMC Class B
Engine Information
Model:	R80-i
Type:	Single cylinder, four-stroke, forced-air cooling, overhead value
Displacement:	79.7cc
Fuel Type:	Unleaded gasoline
Fuel Tank Capacity:	4 L / 1.05 gal.
Engine Oil Capacity:	0.38 L / 0.1 gal.
Noise Level (at a 23ft distance):	56-67dB (full load)
Continuous Working Time:	3.5 hrs (full load)
Power Kit Console
Display:	7-Inch (diagonal) IPS Touch Screen
Communication:	RJ45 CAN
Power Supply:	12 VDC Power Supply
Installation:	Quick-Mounting Design
Operating Temp:	-13F to 140F
Dimensions:	4.5� x 8.1� x 0.9� (H x W x D)
Weight:	1 lbs
Cert:	CE, UL, FCC Compliance / EMC Class B

What's Included

What's Included:

• (1) Power Hub
• (3) 5kWh LFP Battery
• (1) Cable Pack
• (1) AC / DC Smart Distribution Panel
• (1) Battery Mounting Strap
• (1) Power Kit Console Monitor
