ACO Power Midas 40A MPPT Solar Charge Controller with Remote Meter MT-50
Item Code: MY40-MT50
Ship Weight: 6 lbs.
Regular Price: $229.99
Sale Price: $205.80
You Save 11% ($24.19)
*No Interest if paid in full within 6 months on purchases of $149 or more.
Choose Paypal Credit During Checkout subject to credit approval. *See terms. US customers only.
Choose Paypal Credit During Checkout subject to credit approval. *See terms. US customers only.
Product Details
The ACO Power Midas 40A MPPT Solar Charge Controller with Remote Meter MT-50 boasts multiple advantages when compared to similar charge controllers in the market. From our 3 light LED indicator, multiple parameter display screen, 5 setting button interface, waterproof interface cover and included remote monitor system, you can rest assured that you will receive best in class performance and innovative features with the ACO 40A MPPT Controller.
Charge Controller Product Manual
Remote MT-50 Product Manual
• | Automatic: The Charge Controller will automatically identify the proper system voltage and adjust accordingly to 12/24VDC. |
• | Battery Voltage: Compatible with battery voltages between 8V - 32V. |
• | Built-in Protection: Feature innate PV short circuit, PV reverse polarity, Battery over voltage, Battery over discharge, Battery reverse polarity and Load overload protection. |
• | System Voltage: 100V PV input range allows for more solar panels to be connected in series for a faster recharge. |
• | Versatile: Designed to work with Sealed, Flooded, and Gel Batteries. |
• | Remote Monitoring: With the included MT-50 Remote Meter, you will always know the status of your charge controller and easily trouble shoot via the digital display screen |
• | LCD Screen: Large-screen multifunction LCD displays pertinent operational data and operational system status of your solar kit |
• | Real-Time Information: Real-time energy statistics recording. Monitor your solar system in real-time |
Specifications
Tech specs | |
Manufacturer: | ACO Solar |
Weight: | Weight: 3.75 lbs / 1.7 kg |
Warranty: | 12 months |
Dimensions: | 10" x 7.28" x 2.67" in / 255 x 185 x 67.8 mm |
Nominal System Voltage: | 12/24VDC Auto |
Battery Input Voltage Range: | 8V - 32V |
Max.PV Input Power: | 520W/12V / 1040W/24V |
Rated Charge Current: | 40A |
Max. PV Open Circuit Voltage: | 100 VDC |
MPP Voltage Range: | V(BAT+2V) - 72V |
Working Environment Temperature: | -25C - +50C |
Storage Temperature Range: | -35C - +80C |
Grounding: | Common negative |
Communication: | RS485 |
Power Terminals: | Up to 6 AWG |
Enclosure: | IP33 | Remote Meter MT-50 |
Manufacturer: | ACO Solar |
Weight: | 0.42 lbs (.19 kg) |
Connector Type: | RJ45 |
Dimensions: | Faceplate: 3.86" x 3.86" inches / 98 x 98mm Frame: 4.49" x 4.49" in / 114 x 114 mm |
Ambient Temperature: | -20C - +70C/ -4F - 158F |
Meter Cable: | 2m |
Charge Controller Product Manual
Remote MT-50 Product Manual

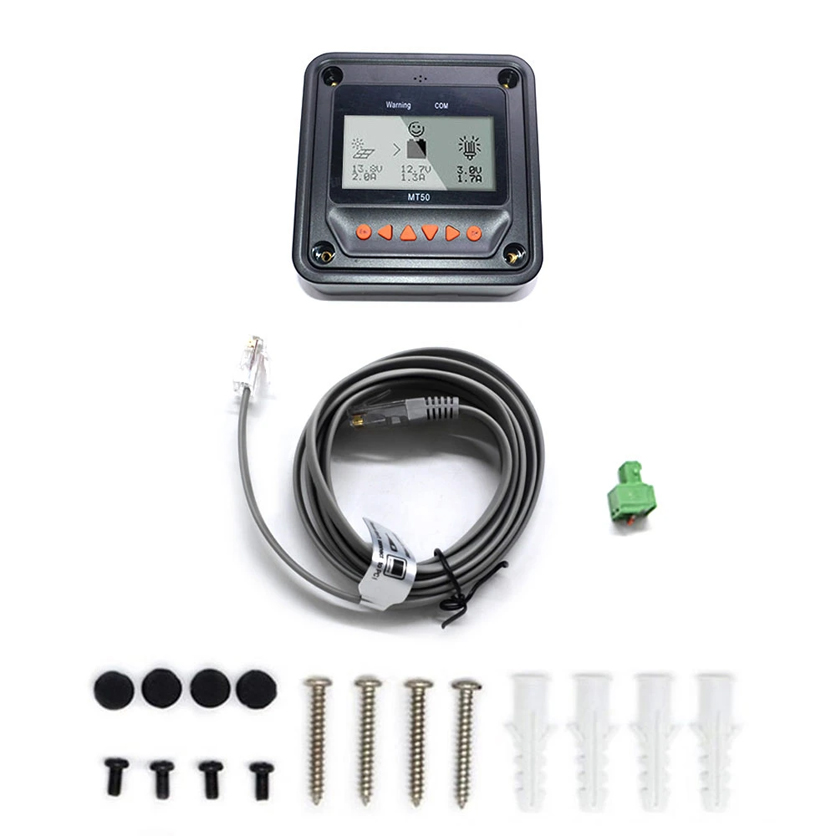

What's Included
What's Included:
• ACO Power Midas 40A MPPT Solar Charge Controller
• MT-50 Remote Meter
• Temperature Sensor
• ACO Power Midas 40A MPPT Solar Charge Controller
• MT-50 Remote Meter
• Temperature Sensor
