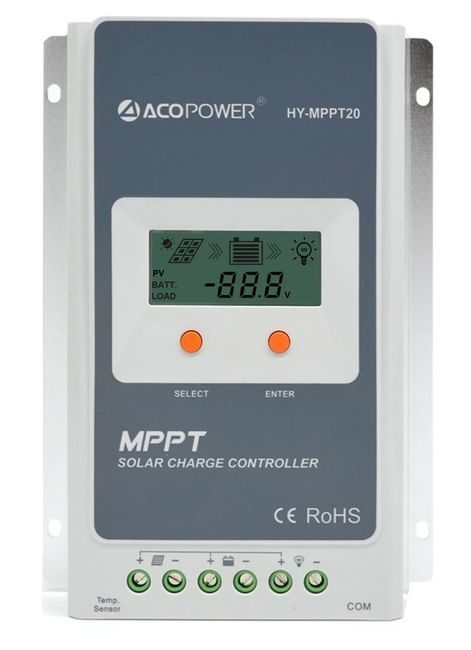

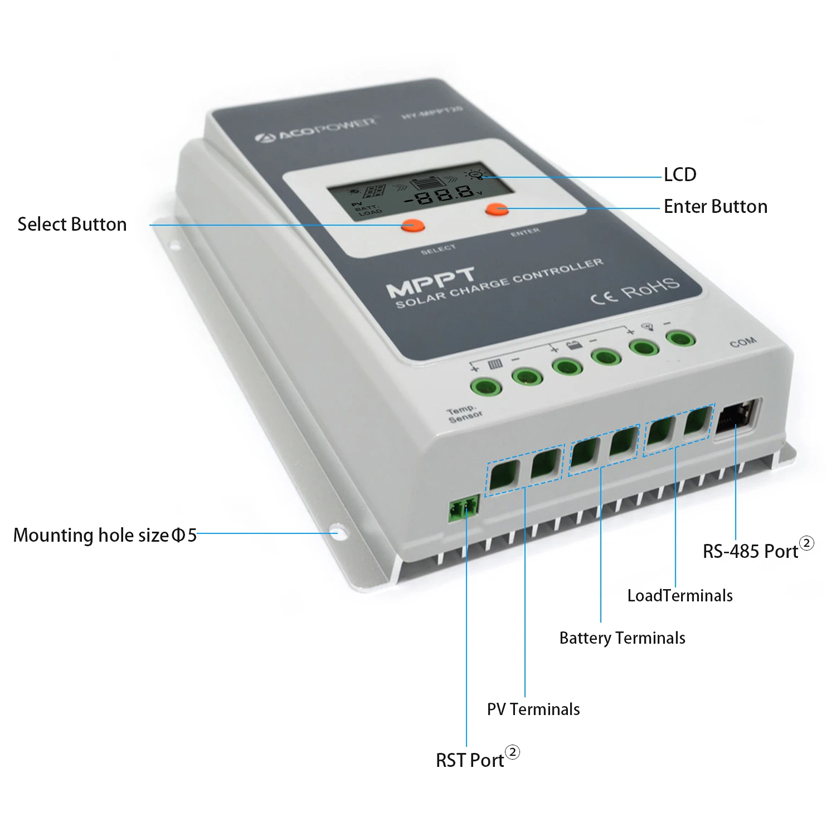

ACO Power 20A MPPT Solar Charge Controller

Name: ACO Power 20A MPPT Solar Charge Controller
SKU: HY2210A
Price: 98.80 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: HY2210A

Ship Weight: 4 lbs.

Regular Price: $118.99

Sale Price: $98.80

You Save 17% ($20.19)

Product Details

Specifications

What's Included

Product Details

The ACO Power 20A MPPT Solar Charge Controller is the perfect device for regulating your favorite solar panels. Features a battery voltage range between 8V - 32V, offers 12/24 VDC automatic identifying system voltage features and is designed to work with sealed, gel and flooded batteries.

•	Automatic: The Charge Controller will automatically identify the proper system voltage and adjust accordingly to 12/24 VDC.

•	Battery Voltage: Compatible with battery voltages between 8V - 32V.

•	Built-in Protection: Features innate PV short circuit, PV reverse polarity, Battery over voltage, Battery over discharge, Battery reverse polarity and Load overload protection.

•	System Voltage: 100V PV input range allows for more solar panels to be connected in series for a faster recharge up to 12V/260W or 24V/520W.

•	Versatile: Designed to work with Sealed, Gel and Flooded batteries

Specifications

Tech specs
Manufacturer:	ACO Solar
Weight:	3 lbs
Warranty:	12 months
Nominal System Voltage:	12/24 VDC Auto
Battery Input Voltage Range:	8V - 32V
Max.PV Input Power:	12V/260W, 24V/520W
Rated Charge Current:	20A
Max. PV Open Circuit Voltage:	100V
MPP Voltage Range:	V(BAT)+2V - 72V
Working Environment Temperature:	-25C - +50C
Storage Temperature Range:	-35C - +80C
Dimensions:	8.66" x 6.06" x 2.05" Inches

Product Manual

What's Included

What's Included:

• ACO Power 20A MPPT Solar Charge Controller
