ACO Power 20A ProteusX Waterproof PWM Solar Charge Controller

Name: ACO Power 20A ProteusX Waterproof PWM Solar Charge Controller
SKU: PX20A
Price: 65.99 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: PX20A

Ship Weight: 1.5 lbs.

Regular Price: $76.99

Sale Price: $65.99

You Save 14% ($11.00)

Product Details

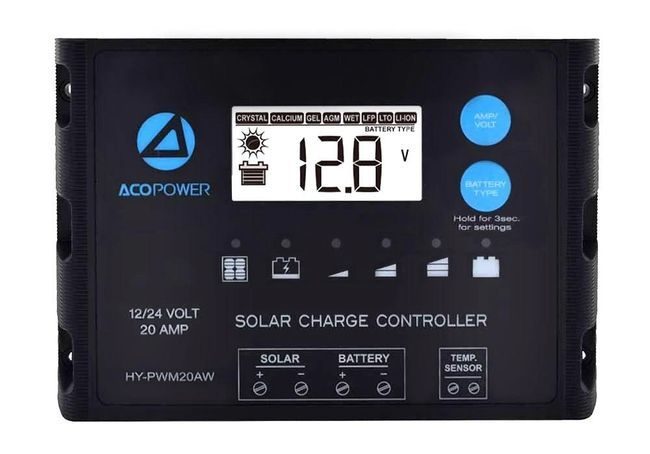

The ACO Power 20A ProteusX Waterproof PWM Solar Charge Controller is the perfect device for regulating your favorite solar panels. Not only is it waterproof, but it is also equipped with advanced PWM technology suitable for 12V and 24V off-grid applications, and compatible with 8 different battery types, including Lithium!

•	Automatic: The Charge Controller will automatically identify the proper system voltage and adjust accordingly to 12/24 VDC.

•	Waterproof: Features a Waterproof design, suitable for indoor, outdoor, camping, boat, and RV use.

•	Battery Voltage: Compatible with battery voltages between 12V - 24V.

•	Built-in Protection: Features innate PV short circuit, PV reverse polarity, Battery over voltage, Battery over discharge, Battery reverse polarity and Load overload protection.

•	System Voltage: 50V PV input range allows for more solar panels to be connected in series for a faster recharge up to 12V/360 watts or 24V/720 watts.

•	Versatile: Designed to work with 8 Types of Batteries! Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium.

•	Negative Ground: Negative Ground ensures compatibility with any negative ground system, which is the standard and most conventional way of grounding.

•	LCD Display: Features a bright blue large LCD display with Volts, amps, amp hours and battery presets.

Specifications

Tech specs
Manufacturer:	ACO Solar
Weight:	1.1 lbs
Warranty:	12 months
Nominal System Voltage:	12/24 VDC Auto
Battery Input Voltage Range:	12V - 24V
Max.PV Input Power:	12V/360 watts, 24V/720 watts
Rated Charge Current:	20A
Max. PV Open Circuit Voltage:	50V
Storage Temperature Range:	-40F - +185F
Dimensions:	5.59" x 3.7" x 1.06" Inches

Product Manual

What's Included

What's Included:

• ACO Power 20A PWM Waterproof Solar Charge Controller
