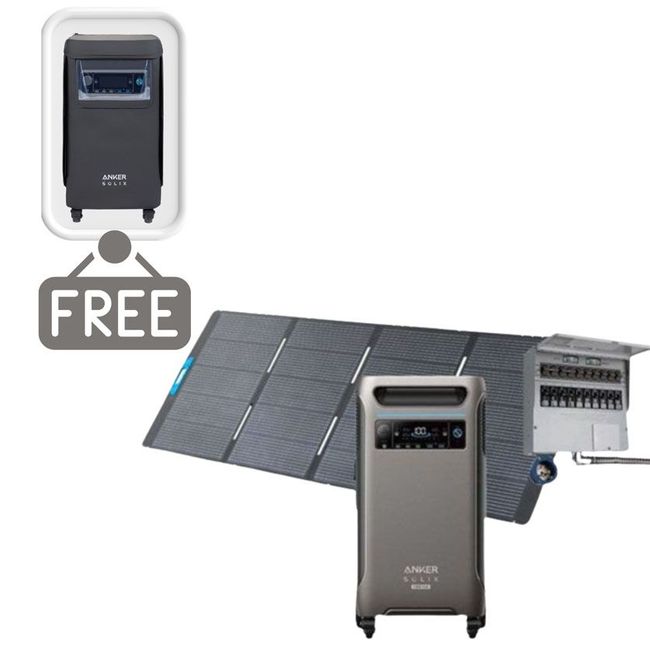

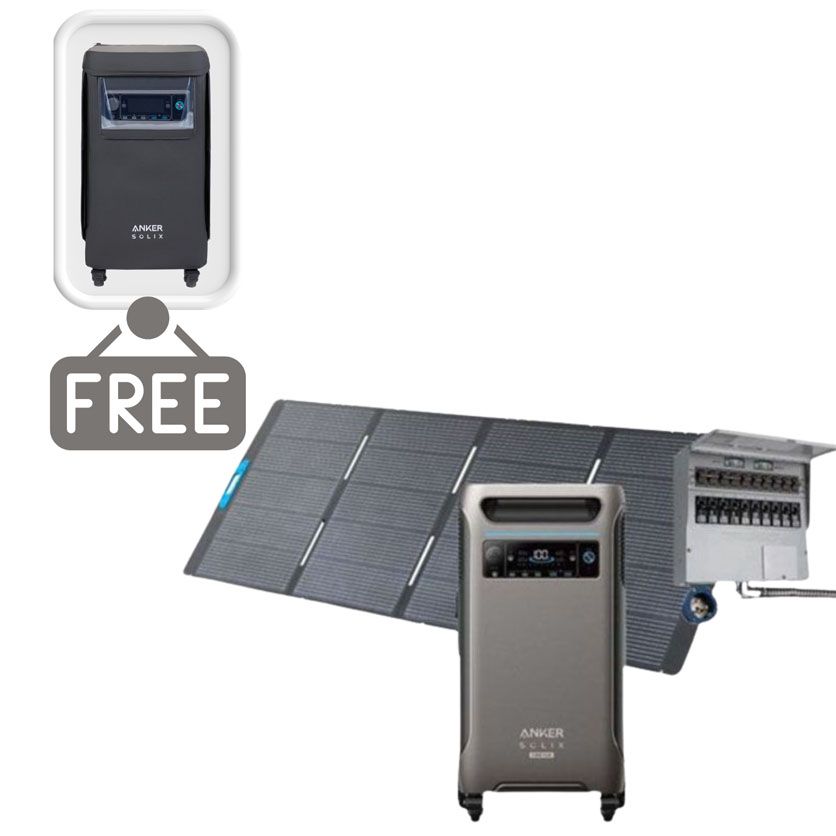

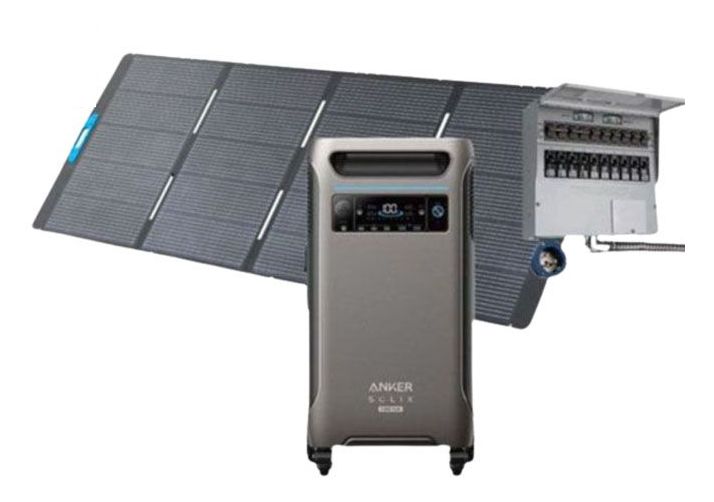

Anker SOLIX F3800 Plus Solar Generator Kit - 3840 Watt Hours - With 400W Anker Solar Panel and 50A Transfer Switch - Includes FREE Protective Cover

Click to Zoom

Satisfaction Guarantee

Add to Wishlist

In Stock

Anker SOLIX F3800 Plus Solar Generator Kit - 3840 Watt Hours - With 400W Anker Solar Panel and 50A Transfer Switch - Includes FREE Protective Cover

Name: Anker SOLIX F3800 Plus Solar Generator Kit - 3840 Watt Hours - With 400W Anker Solar Panel and 50A Transfer Switch - Includes FREE Protective Cover
SKU: B1790113J
Price: 4099.00 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: B1790113J

Ship Weight: 190 lbs.

Regular Price: $4,599.00

Spring Sale: $4,099.00

You Save 11% ($500.00)

Product Details

The Anker SOLIX F3800 Plus Solar Generator Kit - 3840 Watt Hours - With 400W Anker Solar Panel and 50A Transfer Switch features improved functionality when compared to the previous F3800 Generator. Featuring a superior charge controller that allows for 30% additional solar input capacity (3,200W Max), the ability to charge using 240V Fuel Generators and a preferable universal compatibility option with the TT-30R ports that work with most RV applications. The proprietary, long-lasting InfiniPower technology, combined with LiFePO4 batteries, and impact-resistant structural design, make this compact powerstation a long lasting powerhouse. Add another PowerStation and a total of 12 Expansion Batteries and Expand up 53.8kWh for entire home sustainability! Includes a manual transfer switch for home integration.

Power Station Features:

•	Operates at whisper-quiet levels at all times thanks to an internal chip and intelligent AI algorithm, so you barely know it's on.
•	Equipped with an informative LED display that lets you clearly see the cell capacity, current input and output, and estimated time for the Anker SOLIX F3800 Plus to fully recharge.
•	Easily control the portable power station right from the convenience of your phone. Through a fast and stable Bluetooth connection, you can view charging time, remaining battery, temperature, and customize your power usage - no Wi-Fi required!
•	Expand with the user friendly auxiliary expansion batteries and new and improved 2x 1600W / 165V Solar Input Charge Controllers!

Whole Home Power Supply and Circulation:

•	Ultra-High 6,000W AC output with 120V/240V, conveniently powers multiple appliances at the same time, power up to 12,000W max AC output with 2 Anker SOLIX F3800 Plus's giving complete home energy without limits.

First Portable Powerstation that Features AC Coupling:

•

With the Anker SOLIX F3800 Plus and Home Power Panel you can easily connect to your home power system. Its the first portable power station that features AC coupling, so you can just plug into the grid with Home Power Panel and connect your rooftop panels. This allows you to store excess solar energy for when you need it at night or during emergencies.

Customizable to Maximize Savings on your Energy Bill:

•	Get full control of your power via the Anker app to max out your savings. You can charge the Anker SOLIX F3800 Plus when the sunlight is strong or via AC when rates are low. Then power your home at night or during high peak hours.

Goodbye Gas, Hello Clean and Easy Power:

•	Replace your noisy and polluting gas generation with Anker SOLIX F3800 Plus. You can connect directly to your inlet box and power your home with clean, sustainable energy.

5-Year Full-Device Warranty:

•	Instead of the average 2 years, the The Anker SOLIX F3800 Plus Portable Power Station is designed to reliably power your devices every day for 10 years. Additionally, it offers a superior 5-year full-device warranty for a guaranteed, worry-free experience.

Expand up to 53.8kWh

•	Double your power with the easy to connect "3840 Watt Hour Expansion Battery" (sold separately) and expand up to 26.9kWh or add a 2nd Anker SOLIX F3800 Plus Powerstation and 12 Expansion Batteries and expand up to 53.8kWh!

Green Energy:

•	"Click Here" to add solar panels and expand up to 3600W of green energy input power with the dual charge controllers on the Anker SOLIX F3800 Plus.
•	The new and improved charge controller can handle up to 1,600W at 165V each (there are 2 inputs) for a fast and easy series solar panel configuration.

Power Everything On The Go:

•	Load up the RV and power your adventures with built-in NEMA 14-50 and L14-30 ports or use the NEMA 14-50 port to directly power your EV. There are loads of travel possibilities with Anker SOLIX F3800 Plus.
•	Works with 240V Fuel Generators for Long-Lasting Energy. The plus supports AC Pass-through charging as well for UPS functions.

Easy EV Power:

•	Avoid complicated grounding accessories and just connect your EV charger cable to Anker SOLIX F3800 Plus. You can charge your EV at 6,000W/240V. That's long enough for a mile plus mile ride.
•	Features a new and improved NEMA TT-30R 120V 3,000W Output!
•	When life's on the road, you can just plug Anker SOLIX F3800 Plus into your RV's power inlet to run all appliances at the same time. Enjoy 6,000W AC output and with the 3.8kWh capacity, worry-free.

Auto Backup Before Severe Weather:

•	If severe weather is detected, the F3800 Plus Home Power Backup will begin charging on its own, ensuring you have ample reserve power before the storm hits.

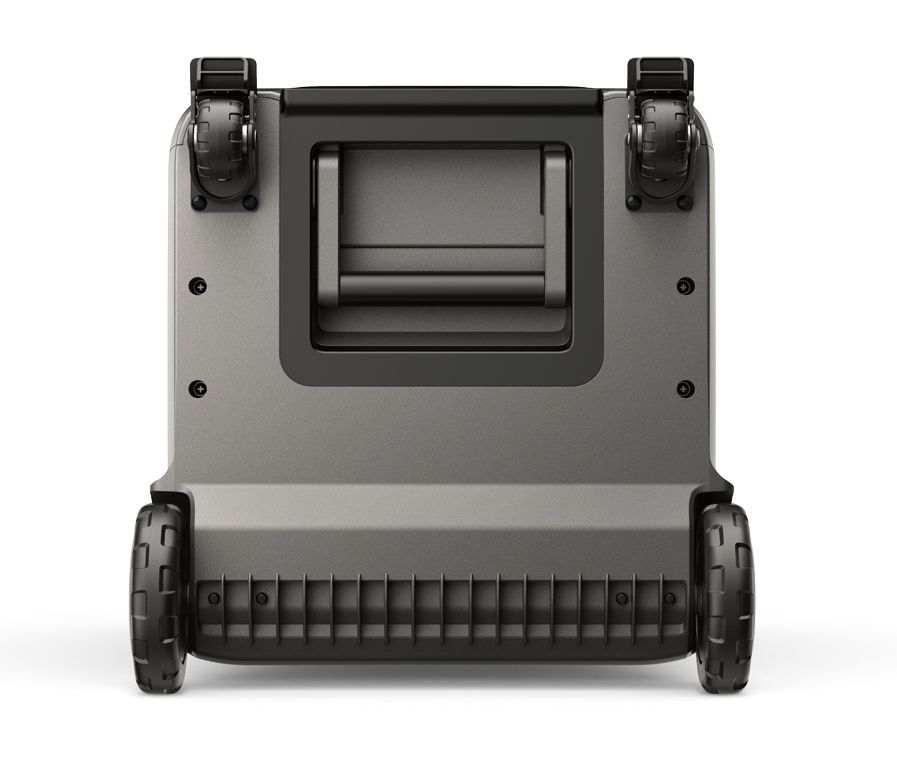

Portable Handles and Wheels:

•	Make traveling convenient with the retractable handle that allows you to pull Anker SOLIX F3800 Plus anywhere. The industrial-grade castor wheels allow Anker SOLIX F3800 Plus to move easily between rooms or outdoors on rugged terrain.
•	"Click Here" for the Anker SOLIX F3800 Protective Cover is designed exclusively for the Anker SOLIX F3800 Plus Portable Power Station and made of a high-quality polyester cover keeps your unit protected from water and dust. (Sold Separately)

Dual Voltage Features:

•	120V/240V Dual Output has the ability to power 100% of home and RV Appliances.

Manual Transfer Switch:

•	Includes the Home Backup Kit for The Anker Solix F3800 Plus Powerstation, the next generation of Loadside manual transfer switches.
•	The Home Backup Kit (Transfer Switch + Cable) has been specifically tested with the Anker SOLIX F3800 Plus Powerstation and Solar Generator. The Color-Coded Built-In Wattage Meter helps you balance and manage the Anker SOLIX F3800 plus output distribution.

Anker Solix Home Power Panel Kit with Subpanel:

•	"Click Here" to view the Anker Solix Home Power Panel Kit with Subpanel for The Anker Solix F3800 Plus Powerstation.
•	This Automatic transfer switch will sense when power has gone out from the grid and automatically switch your selected circuits over to the backup power system. You will not even realize power went out!

Anker SOLIX PS400 400W Solar Panel:

•	Up to 23% Conversion Efficiency: You'll notice 1.5X faster charging times thanks to monocrystalline solar cells and a powerful sunlight-trapping surface.
•	Superior Portability: Designed to be brought on adventures so you can have continuous power to charge your devices quickly on the go.

4-Mode Angle Adjustments:

•	Seamlessly adjust SOLIX PS400 Solar Panel to 30, 40, 50 degrees, or 60 degrees via the adjustable kickstand for optimal solar power.

IP67 Waterproof Protection:

•	With an IP67 waterproof design, you can camp without fear and enjoy the adventure with SOLIX PS400 Solar Panel.

Easy Setup:

•	Connect to your favorite Power Station with the included MC4 extension cable and MC4 to XT60 solar charging cable converter.

Installation Notification:

•	Installation MUST be performed by a licensed electrician

Pro/Tran 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch:

•	Features (10) Total Circuits (1" Interchangeable Style) - (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole.
•	Color-Coded Built-In Wattage Meter helps you balance and manage the Anker SOLIX F3800 loads.
•	The Hinged, non-metallic cover protects the toggle switches/breakers & provides a complete finished appearance.
•	Designed for indoor use only.

Prepare Your Home for Power Outages:

•	Stay proactive and grant your family peace of mind. Handpick up to 10 crucial circuits, encompassing your refrigerator, garage door, key living area outlets, and light switches. For an added layer of power security, pair this device with the F3800 Powerstation by Anker!

Enjoy a Seamless and Trouble-free Home Backup Power Experience:

•	Craft a simple, reliable, and environmentally friendly home backup solution to ensure the functionality of your essential circuits during power outages. Attain peace of mind through the smooth incorporation of the comprehensive whole-home backup kit, which includes 2x F3800 Solar Generators, Transfer Switch, and Power Cord.
•	Certified for use by Underwriter Laboratories to UL Standard 1008 & meets all requirements of article 702 of the NEC ANSI/NFPA 70.

Powder-Coated Steel Cabinet For Indoor Installation:

•

Features 18" flexible conduit w/ all factory wires clearly marked/colored, (6) combination 1/2" & 3/4" knockouts for easier installation and is easily re-configured in the field for multiple 2-pole circuits.

•

Guarantee the security and dependability of your appliances with a backup power solution listed under cULus 1008 standards. This adaptable choice is designed to work seamlessly with any UL listed 1" interchangeable circuit breaker, facilitating effortless reconfiguration in the field to accommodate various double-pole circuits if required. Moreover, it boasts a practical swing-up protective cover, providing a polished finishing touch.

Specifications

General Information
Manufacturer Name:	Anker
Dimensions:	27.6" x 15.1" x 14.6" in (with wheels 2.56")
Weight:	132.30 lbs
Operating usage temp:	Charging: -20 to 40C / -4 to 104F Recharging: -0 to 40C / 32 to 104F
Warranty:	5 Year Warranty
Battery
Cell Type:	LFP (LiFePO4) Battery
Cell Capacity:	3840Wh
Battery Cycles:	3,000+ (to 80% Capacity)
Input
AC Input Power:	120V - 1800W
AC Input Charge Time:	2.67 Hours
# of DC Inputs:	2
Solar Input:	11-165V - 17A (2x 1,600W Max)
Solar Recharge Time	2 hours (2400W) 3.2 (1200W)
Charge Controller Type:	MPPT
Solar Panel Max Input Recharge Time	1.20 Hours
Car DC Input:	120W (32 Hours)
Output
Maximum Output:	6444 Watts
Number of Ports:	14
# of Standard AC Sockets:	6
Standard AC Rated Power:	6000W
Standard AC Surge Power:	9000W
AC Total Output:	6000W
AC Auto Shut-Off:	Stand By Mode 12 Hours
Special AC Socket:	1x Nema TT-30R (240V) 1x L14-30 (6000W Max, 240V)
# of USB-A Output:	2
USB-A Rated Power (per port):	5V - 2.4A (12W Max)
USB-A Total Output:	24W
# of USB-C Output:	3
USB-C Rated Power (per port):	5V - 3A/9V - 3A/15V - 3A/20V - 3A/20V - 5A (100W Max)
USB-C Total Output:	300W
USB auto shut-off:	Yes
# of Car Outlet:	1
Car Outlet Rated Power (per port):	10.8-14V = 10A (120W Max Per Port)
240V Fuel Generator Charging:	Yes
Anker PS400W Solar Panel
Manufacturer Name:	Anker
Rated Power:	400W
Open Circuit Voltage:	57.6V
Operating Voltage:	48V
Operating Current:	8.33A
Dimension (Folded):	39" x 26.6" x 2" in
Dimension (Unfolded)	100" x 39" x 1.2" in / 2591 x 913 x 30 mm
Net Weight:	35.3 lb
Home Backup Kit for The Anker Solix Powerstations
Manufacturer Name:	Anker
Dimensions:	11.75" x 11.75" x 4.5"
Weight:	20 lbs
Voltage:	120V / 240V
# of Circuits:	10
Maximum Watts:	12500W
Circuit Breaker Protection:	Each Circuit
Frequency:	60 Hz
Amps:	50A V240 VAC
Enclosure:	NEMA 1R
Conduit Length:	18

What's Included

What's Included:

• (1) Anker SOLIX F3800 Plus - 3840Wh - 6000W
• (1) AC Charging Cable
• (2) MC4 to Solar Charging Adapter
• (1) Anker SOLIX PS400 Solar Panel 400W
• (2) 9.8ft (3 m) MC4 Solar Charging Cable
• (1) 1.6 ft (0.5 m) MC4 to XT-60 Solar Charging Cable
• (1) Transfer Switch
• (1) Connection Cable
• (1) User manual
• (1) FREE Protective Cover
